316L 304 302 1um-100um Electrical And Thermal Conductivity Metal Fiber(Stainless steel fiber/Fecral fiber/Hastelloy fiber/Titanium fiber) For Conductive Fabric,Anti Static Yarn and Conductive Plastic
| Place of Origin | Yiyang,China |
|---|---|
| Brand Name | Huitong |
| Certification | SGS,ISO9001-2015,ISO14001-2015，ISO45001 |
| Model Number | Stainless Steel Fiber / Staple Fiber/Short Fiber |
| Minimum Order Quantity | 10kg |
| Price | Negotiable |
| Packaging Details | paper carton |
| Delivery Time | 3-7 days depends on Quantity |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 10tons per months |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 316L\304 Stainless Steel Fiber | Weight/meter | 1.4-3.3g/m |
|---|---|---|---|
| Diameter | 1-100um | Strength | ≥18cN |
| Length | Customized As Request | Type | Metal Fiber/Staple Fiber/ Short Fiber |
| Highlight | 40um Stainless Steel Metal Fiber,302 Stainless Steel Metal Fiber,Anti Static Stainless Steel Fiber |
||
Product Description

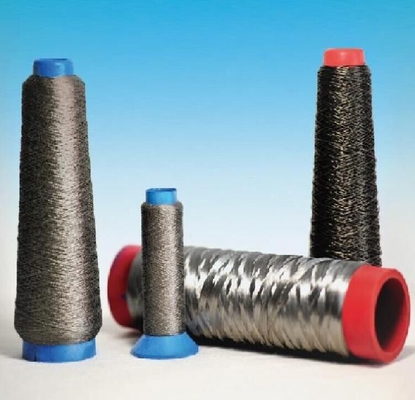

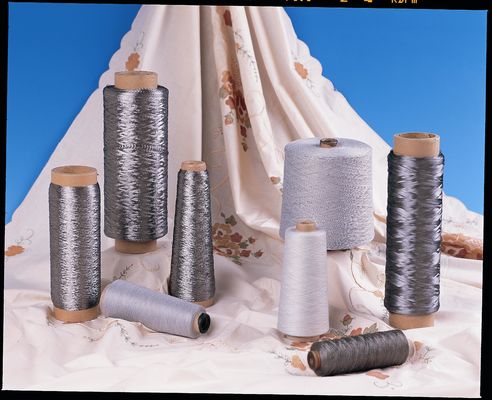

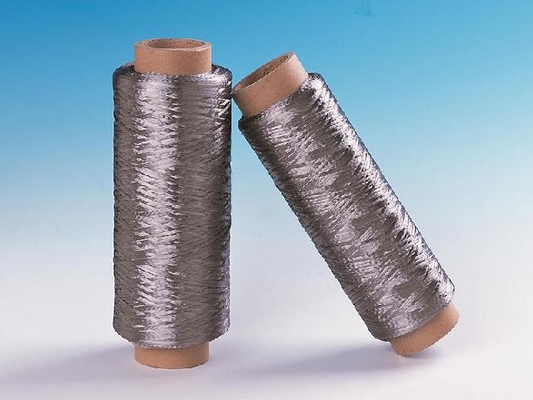

316L 304 302 1um-100um Electrical And Thermal Conductivity Metal Fiber Used For Conductive Fabric,Anti Static Yarn and Conductive Plastics so on
【Principal Component】
316L,304,302,430,434 and other stainless steel materials.
【Product Description】
Made of stainless steel wire by bundle drawing process, the diameter is as fine as 1μm ~ 100μm. Since the diameter of stainless steel fiber reaches the ultra-fine-micron level, it not only maintains the properties of stainless steel such as electrical conductivity, thermal conductivity, corrosion resistance, high elastic modulus and tensile strength, but also has softness and high specific surface area similar to other textile fibers, so It is the perfect base materials for the production of various stainless steel fiber products. It can be widely used in textile, filtration, metallurgy and environmental protection and other fields which covering the fields of industry, civil and military.
【Technical Specs】
| Diameter(μm) | Filaments(f) | Strength(cN) | Elongation(%) |
Weight/meter(g/m) |
| 4.5 | 12000 | ≥2.0 | ≥0.7 | 1.40～1.64 |
| 6.5 | 6000 | ≥4.5 | ≥1.0 | 1.56～1.70 |
| 7.3 | 6000 | ≥5.5 | ≥1.0 | 1.98～2.14 |
| 6000 | ≥4.0 | ≥0.8 | 1.92～2.20 | |
| 8 | 6000 | ≥7 | ≥1.05 | 2.34～2.57 |
| ≥4.0 | ≥0.85 | 2.26～2.62 | ||
| 12 | 2000 | ≥18 | ≥1.1 | 1.82～1.98 |
| ≥13.5 | ≥0.9 | 1.76～2.04 | ||
| 22 | 1000 | ≥50 | ≥1.25 | 3.06～3.3 |
Annotate:
1)The diameter of the fiber can be produced between 1 and 100 micron according to the customer’s request.
2)The fiber’s filaments and breaking strength of single fiber can be controlled by the customer’s request.
3)The fiber’s room temperature resistance will change along with the stainless steel state.
Main Application:
1 Pure stainless steel fiber fabric
2 Blended spun stainless steel fiber Fabrics
3 Metal fiber sintered felt
4 Conductive plastics for electromagnetic shielding and anti-static,anti-counterfeit and anti-static paper
5 Fiber reinforced materials
6 anti-static brush,anti-static wrist brand etc
7 High Temperature heating body
8 High temperature cushion mould,high temperature conveyor belt
