316L Stainless Steel Twist Threads 12um 100filament*2 For UHF RFID Tag
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | SUS316 | Twist | 335t |
|---|---|---|---|
| Filament | 100f | Temperature | 500 Degree Resistant |
| Gram Weight | 0.16-0.2g/m | Single Filament Strength | ≥19cN |
| Highlight | 12um Stainless Steel Twist Threads,100filament Stainless Steel Twist Threads,UHF RFID Tag Metal Twist Threads |
||
Product Description

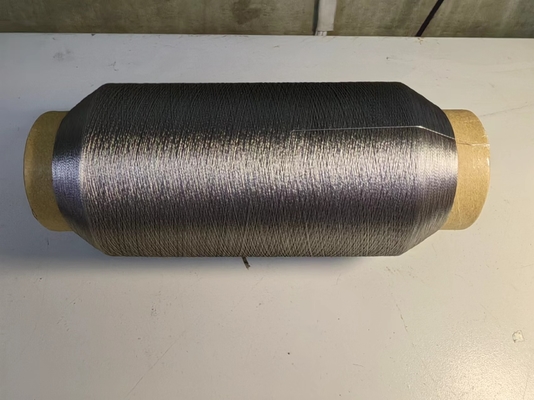

316L Stainless Steel Twist Threads 12um 100filament*2 For UHF RFID Tag
Product Name: Ultra Fine Metal Composite Wire
Component: SUS316L
With excellent electrical conductivity, high strength, high elasticity, abrasion resistance, corrosion resistance and excellent thermal stability in oxidative atmosphere; good durability, easy to weave into textiles, wide resistance range, customizable heating resistance ;The intelligent heating element made by ultra-fine metal fiber wire has the characteristics of softness, folding resistance, uniform heating and long service life.
| Type | Weight/meter (g) | Breaking load(N) | Elongation | Average Resistance |
| 14μm×90×1 | 0.12 | 25 | ≥1.10% | 61 |
| 12μm×90×2 | 0.17 | 44 | ≥1.10% | 42 |
| 12μm×100×1 | 0.095 | 24 | ≥1.10% | 59 |
| 12μm×100×2 | 0.19 | 41 | ≥1.10% | 38 |
| 12μm×100×3 | 0.28 | 69 | ≥1.10% | 22 |
| 12μm×275×1 | 0.25 | 59 | ≥1.10% | 27 |
| 12μm×275×2 | 0.50 | 75 | ≥1.10% | 14 |
| 12μm×275×3 | 0.75 | 125 | ≥1.10% | 9 |
| 12μm×275×4 | 1.01 | 130 | ≥1.10% | 7 |
| 12μm×275×5 | 1.25 | 160 | ≥1.10% | 5.5 |
| 12μm×275×6 | 1.5 | 180 | ≥1.10% | 4.7 |
| 12μm×275×8 | 2 | 180 | ≥1.10% | 3.6 |
| 8μm×1000×1 | 0.42 | 69 | ≥1.10% | 16 |
| 8μm×1000×2 | 0.85 | 108 | ≥1.10% | 8 |
| 12μm×1000×1 | 0.95 | 100 | ≥1.10% | 7 |
| 12μm×1000×2 | 1.9 | 340 | ≥1.10% | 3.6 |
| 13.3μm×100×3 | 0.33 | ≥80 | ≥1.10% | 22 |
Product Application
Be used in intelligent heating clothing (heating gloves, belts, insoles, socks, vests, jackets, sleeping bags, etc.), heating pads, car seats and steering wheel heating, it also widely used in anti-static brushes, high temperature sewing thread, RFID and so on.
