Sintered Stainless Steel Fiber Felt Best Media for 3000 Bubble Point Disc Filters
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 20LL4JJ | Micron Rating | 20um |
|---|---|---|---|
| Support Mesh | Top -50*50（W/D 0.19mm）/Btm -50*50（W/D 0.19mm） | Thickness | 1.17mm |
| Porosity | 68% | Bubble Point | 1850Pa |
| Permeability | 190L/dm2.min | Fiber Density | 1500 |
| Mesh Density | 50 Mesh | Weight | 3000 |
| Highlight | Sintered Stainless Steel Fiber Felt,Disc Filters Stainless Steel Fiber Felt |
||
Product Description

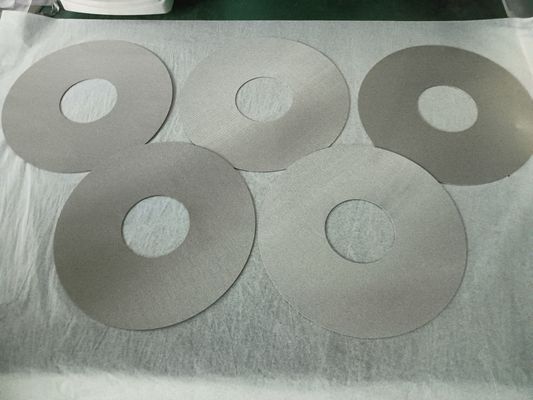

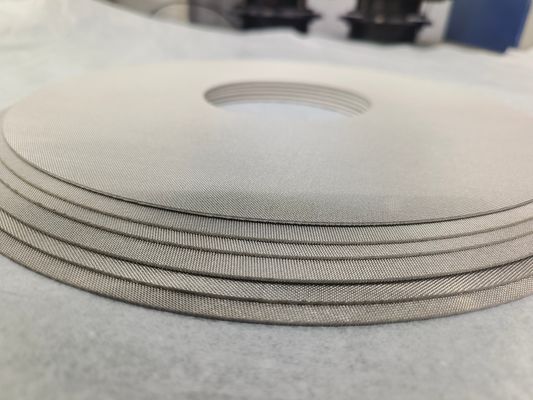

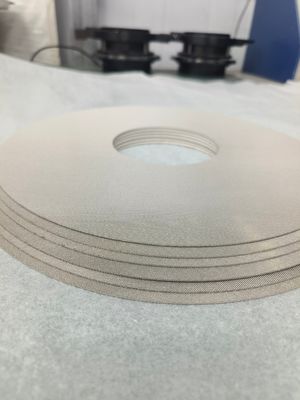

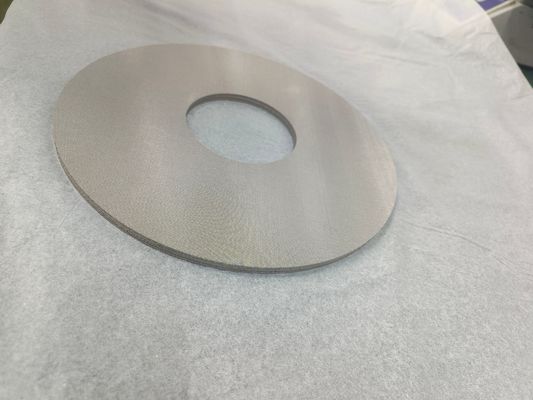

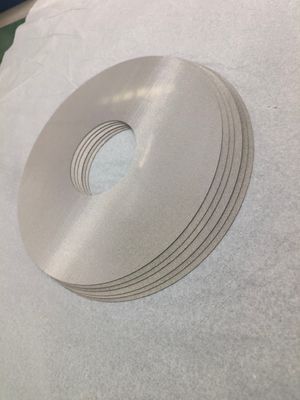

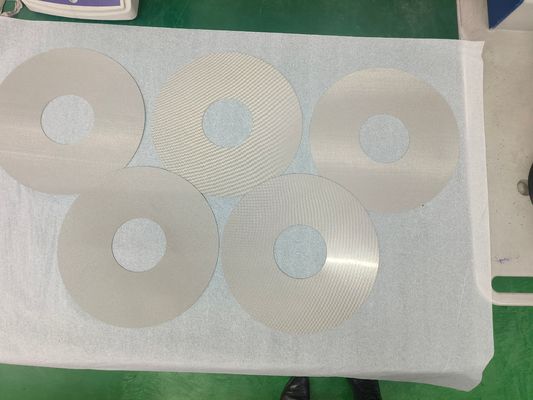

Sintered Stainless Steel Fiber Felt ---Best Media For Disc Filters
【Description】
The stainless felt is formed by steel fibers with uniform diameter and processed by air-laid and then vacuum sintered, so that the felt possess excellent strength.
The muti-layer structure of the filter material increases the dirt holding capacity; the uniform network structure and the pore size provide the filter material excellent porosity.
* High-pressure resistance, high-temperature resistance, corrosion resistance;
* Repeatable cleaning and regeneration
* Less pressure loss and higher flow rate;
Material available: Stainless Steel, Inconel, Hastelloy
The muti-layer structure of the filter material increases the dirt holding capacity; the uniform network structure and the pore size provide the filter material excellent porosity.
* High-pressure resistance, high-temperature resistance, corrosion resistance;
* Repeatable cleaning and regeneration
* Less pressure loss and higher flow rate;
Material available: Stainless Steel, Inconel, Hastelloy
【Application】
Filtration for chemical fiber, film, viscose and other industries;
Using for high-temperature flue gas dust precipitator;
Petroleum and petrochemical, fuel, hydraulic oil filtration ,etc.
Using for high-temperature flue gas dust precipitator;
Petroleum and petrochemical, fuel, hydraulic oil filtration ,etc.
More Disc Filters Media are available too:
10LL4JJ
20LL4JJ
25LL4JJ
30LL4JJ
40LL4JJ
60LL4JJ
