Grey Ultra-Fine Metal Fiber Composite Wire with 1-100um Diameter Optimal Electrical Conductivity and High Elasticity
| Place of Origin | China |
|---|---|
| Brand Name | Huitong |
| Certification | ISO90001\ROHS\ISO45001 |
| Model Number | Ultrafine Metal Fiber Composite Wire-- Applicated in High Temperature Sewing Wire |
| Minimum Order Quantity | 1 |
| Packaging Details | paper carton;Customized |
| Delivery Time | 15-30days |
| Payment Terms | T/T |
| Supply Ability | 2000-10000kg/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | 316L 304 FCA | Cloor | Grey |
|---|---|---|---|
| Diameter | 1μm--100μm | ||
| Highlight | Ultra-Fine Metal Fiber Composite Wire,High Elasticity Metal Fiber Composite Wire,1-100um Metal Fiber Composite Wire |
||
Product Description
Product Overview
【Description】
With excellent electrical conductivity, high strength, high elasticity, abrasion resistance,corrosion resistance and excellent thermal stability in oxidative atmosphere; good durability, easy to weave into textiles, wide resistance range, customizable heating resistance;the intelligent heating element made by ultra-fine metal fiber wire has the characteristics of softness, folding resistance, uniform heating and long service life.
【Application】
Be used in intelligent heating clothing (heating gloves, belts, insoles, socks, vests,jackets, sleeping bags, etc.), heating pads, car seats and steering wheel heating, it also widely used in anti-static brushes, high temperature sewing thread, RFID and so on.
【Package】

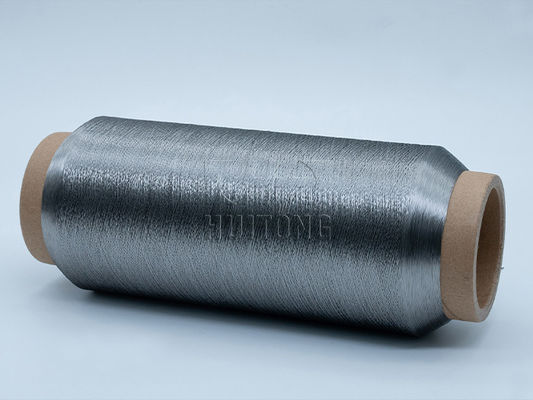

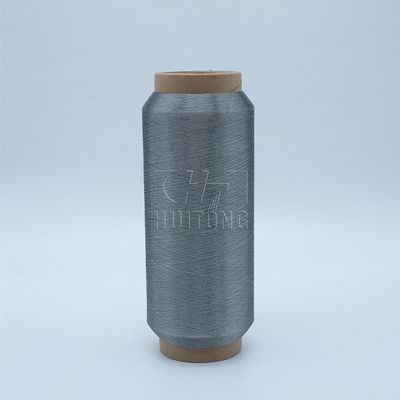

1 Cardboard conical tube
2 Cylindrical tube
3 Spool
【Technical parameters】
With excellent electrical conductivity, high strength, high elasticity, abrasion resistance,corrosion resistance and excellent thermal stability in oxidative atmosphere; good durability, easy to weave into textiles, wide resistance range, customizable heating resistance;the intelligent heating element made by ultra-fine metal fiber wire has the characteristics of softness, folding resistance, uniform heating and long service life.
【Application】
Be used in intelligent heating clothing (heating gloves, belts, insoles, socks, vests,jackets, sleeping bags, etc.), heating pads, car seats and steering wheel heating, it also widely used in anti-static brushes, high temperature sewing thread, RFID and so on.
【Package】
1 Cardboard conical tube
2 Cylindrical tube
3 Spool
【Technical parameters】
| Type | Weight/meter (g/m) | Breaking load(cN) | Elongation(%) | Average Resistance(Ω) |
| 14μm×90×1 | 0.12 | 25 | 1.1 | 52 |
| 12μm×90×2 | 0.17 | 44 | 1.1 | 42 |
| 12μm×100×1 | 0.095 | 24 | 1.1 | 52 |
| 12μm×100×2 | 0.19 | 41 | 1.1 | 38 |
| 12μm×100×3 | 0.28 | 69 | 1.1 | 22 |
| 12μm×275×1 | 0.26 | 59 | 1.1 | 27 |
| 12μm×275×2 | 0.54 | 75 | 1.1 | 14 |
| 12μm×275×3 | 0.78 | 125 | 1.1 | 9 |
| 12μm×275×4 | 1.05 | 130 | 1.1 | 7 |
| 12μm×275×5 | 1.3 | 160 | 1.1 | 5 |
| 12μm×275×6 | 1.5 | 180 | 1.1 | 4 |
| 8μm×1000×1 | 0.42 | 69 | 1.1 | 16 |
| 8μm×1000×2 | 0.85 | 108 | 1.1 | 8 |
| 12μm×1000×1 | 0.95 | 100 | 1.1 | 7 |
| 12μm×1000×2 | 1.9 | 340 | 1.1 | 4 |
| 13.3μm×100×3 | 0.33 | 80 | 1.10 | 一 |
