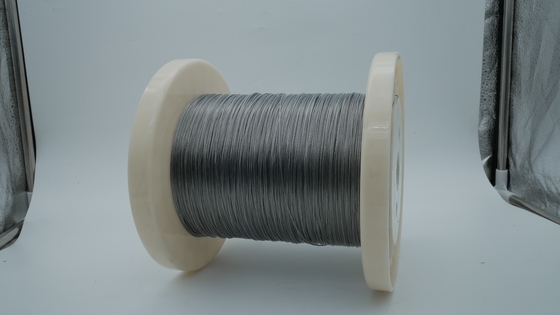

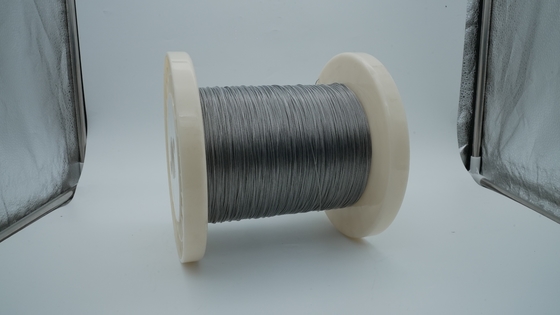

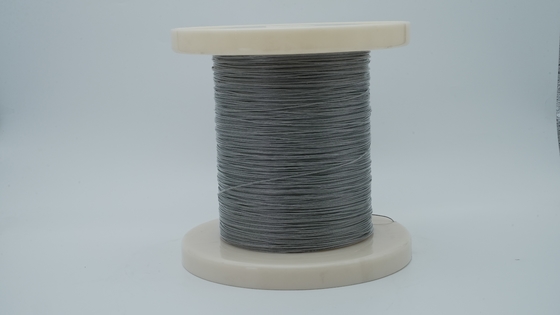

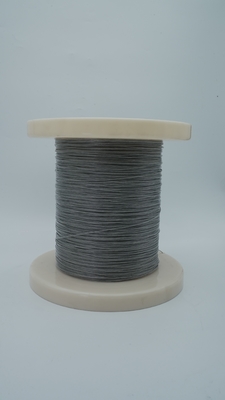

316L 14um 90*2 Filaments With Grey PFA Coating For Flexible Heating Elements,Heating Mats For Infrared Heaters

  • 316L 14um 90*2 Filaments With Grey PFA Coating For Flexible Heating Elements,Heating Mats For Infrared Heaters
  • 316L 14um 90*2 Filaments With Grey PFA Coating For Flexible Heating Elements,Heating Mats For Infrared Heaters
  • 316L 14um 90*2 Filaments With Grey PFA Coating For Flexible Heating Elements,Heating Mats For Infrared Heaters
  • 316L 14um 90*2 Filaments With Grey PFA Coating For Flexible Heating Elements,Heating Mats For Infrared Heaters
  • 316L 14um 90*2 Filaments With Grey PFA Coating For Flexible Heating Elements,Heating Mats For Infrared Heaters
Place of Origin Yiyang,China
Brand Name Huitong
Certification SGS Rohs
Model Number 14um*90*2
Minimum Order Quantity 10km
Price Negotiable
Packaging Details Paper carton
Delivery Time depends on quantity
Payment Terms T/T, T/T, D/P, D/A, Western Union
Supply Ability 1000km per months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 316L Color Grey PFA Coating
Outside Diameter 0.6mm Resistance 30Ω+-8%
Wall Thickness 0.15mm Weight With Coating 0.69g
Highlight

5micron stainless steel sewing thread

,

SGS certification stainless steel sewing thread

,

SGS certification anti static yarn
Leave a Message
Product Description

316L 14um 90*2 Filaments With Grey PFA Coating For Flexible Heating Elements,Heating Mats For Infrared Heaters



Descriptions



Metal fiber twist thread is manufactured into flexible thread by twisting with a single strand or multiple strands of long fibers. It possesses stable resistivity, fine high temperature resistant and conductive performance, after coating with PFA,FEP, metal fiber twist thread can be work on electric heating elements&heating mats, smart textiles,Textile sensors or composite applications.



In Embroidery technology part, conductive wires(Strands) are attached to carrier materials virtually three- diamensionally.



Technical Parameter for more wires:



Specification

Weight per Meter(g)

Breaking Load(N)

Elongation (%)

Average Resistance()

14m×90×1

0.12

25

1.10%

61

12m×90×2

0.17

44

1.10%

42

12m×100×1

0.095

24

1.10%

59

12m×100×2

0.19

41

1.10%

38

12m×100×3

0.28

69

1.10%

22

12m×275×1

0.26

59

1.10%

27

12m×275×2

0.54

75

1.10%

14

12m×275×3

0.78

125

1.10%

9

12m×275×4

1.05

130

1.10%

7

12m×275×5

1.3

160

1.10%

5

12m×275×6

1.5

180

1.10%

4

8m×1000×1

0.42

69

1.10%

16

8m×1000×2

0.85

108

1.10%

8

12m×1000×1

0.95

100

1.10%

7

12m×1000×2

1.9

340

1.10%

4





316L 14um 90*2 Filaments With Grey PFA Coating For Flexible Heating Elements,Heating Mats For Infrared Heaters 0
