316L 304 310S 1-100um Pure Stainless Steel Fiber Made By Bundle Drawing Process
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | SUS316L | Filament | 2000f |
|---|---|---|---|
| MOQ | 1kg | Temperature | 500degree |
| Tear Strength | ≥18 CN | Certification | SGS |
| Highlight | chemical resistant stainless steel fiber,1.5g/m stainless steel fiber,1.5g/m ultrafine metal wire |
||
Product Description

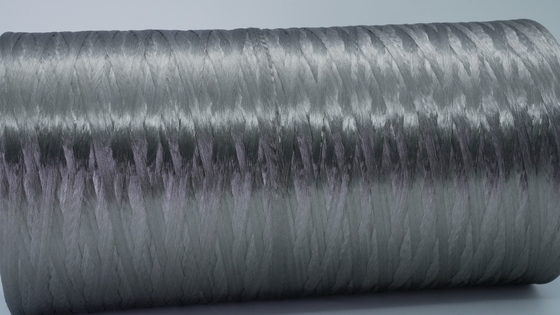

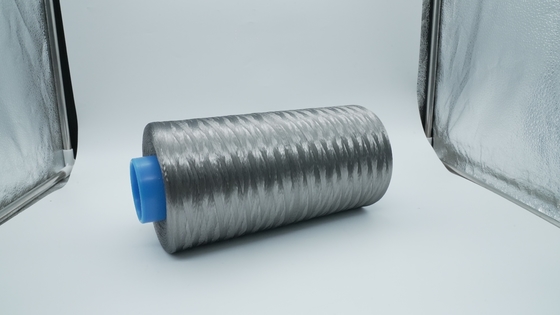

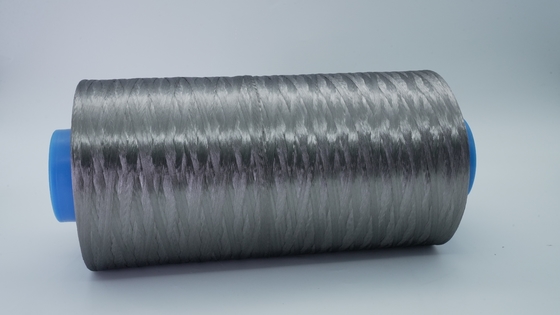

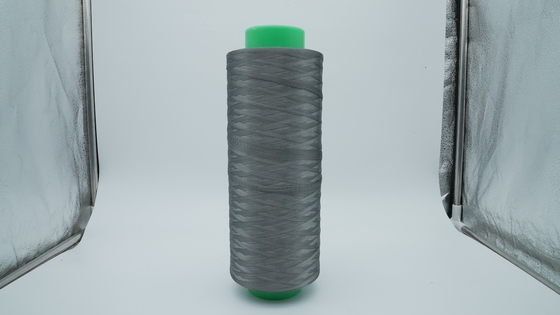

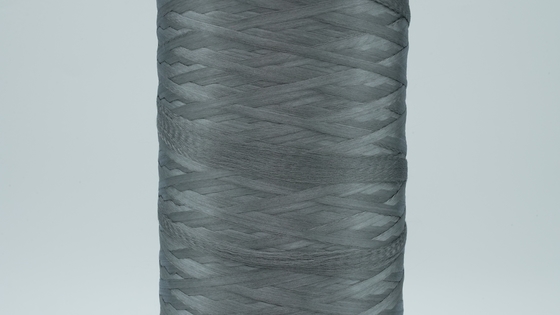

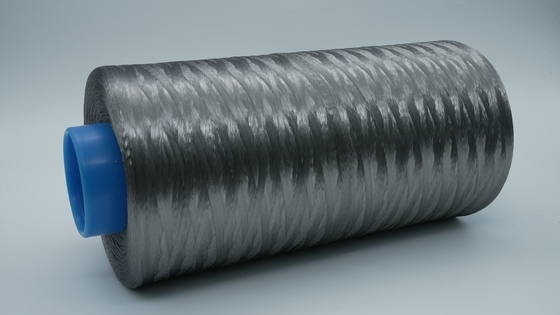

Product Name: 316L 304 310S 1-100um Pure Stainless Steel Fiber Made By Bundle Drawing Process
Component:Stainless steel of 316L 304 310S
Descriptions: Made of stainless steel wire by bundle drawing process, the diameter is as fine as 1μm ~ 40μm. Since the diameter of stainless steel fiber reaches the ultra-fine-micron level, it not only maintains the properties of stainless steel such as electrical conductivity, thermal conductivity, corrosion resistance, high elastic modulus and tensile strength, but also has softness and high specific surface area similar to other textile fibers, so It is the perfect base materials for the production of various stainless steel fiber products. It can be widely used in textile, filtration, metallurgy and environmental protection and other fields which covering the fields of industry, civil and military.
Main technical parameters as follows:
| Diameter(μm) | Filaments(f) | Strength(cN) | Elongation(%) |
Weight/meter(g/m) |
| 4.5 | 12000 | ≥2.0 | ≥0.7 | 1.40～1.64 |
| 6.5 | 6000 | ≥4.5 | ≥1.0 | 1.56～1.70 |
| 7.3 | 6000 | ≥5.5 | ≥1.0 | 1.98～2.14 |
| 6000 | ≥4.0 | ≥0.8 | 1.92～2.20 | |
| 8 | 6000 | ≥7 | ≥1.05 | 2.34～2.57 |
| ≥4.0 | ≥0.85 | 2.26～2.62 | ||
| 12 | 2000 | ≥18 | ≥1.1 | 1.82～1.98 |
| ≥13.5 | ≥0.9 | 1.76～2.04 | ||
| 22 | 1000 | ≥50 | ≥1.25 | 3.06～3.3 |
Annotate:
1)The diameter of the fiber can be produced between 1 and 100 micron according to the customer’s request.
2)The fiber’s filaments and breaking strength of single fiber can be controlled by the customer’s request.
3)The fiber’s room temperature resistance will change along with the stainless steel state.
Main Application:
1 Pure stainless steel fiber fabric
2 Blended spun stainless steel fiber Fabrics
3 Metal fiber sintered felt
4 Conductive plastics for electromagnetic shielding and anti-static,anti-counterfeit and anti-static paper
5 Fiber reinforced materials
6 anti-static brush,anti-static wrist brand etc
7 High Temperature heating body
8 High temperature cushion mould,high temperature conveyor belt
Package:
1 Cardboard conical tube
2 Cylindrical tube
3 Spool
