Customizable Length Gas Burner Metal Fiber Fabric Solutions with FeCrAl Materials
| Place of Origin | China |
|---|---|
| Brand Name | Huitong |
| Certification | ISO9001-2015,ISO14001-2015,ISO25001,ISO16949 |
| Model Number | Gas Burner |
| Minimum Order Quantity | 1m2 |
| Price | USD EURO |
| Packaging Details | customized packaging as required. |
| Delivery Time | 15-30days |
| Payment Terms | T/T, D/A, L/C, T/T, Western Union |
| Supply Ability | 1000m2/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | FeCrAl | Length | Can Be Customized As Request |
|---|---|---|---|
| Warranty | ≥3 Years | Product Name | Metal Fiber Burner |
| Brand | Huitong | ||
| Highlight | FeCrAl Materials Metal Fiber Burner,Gas Burner Metal Fiber Fabric Solutions,Customizable Length Metal Fiber Burner |
||
Product Description

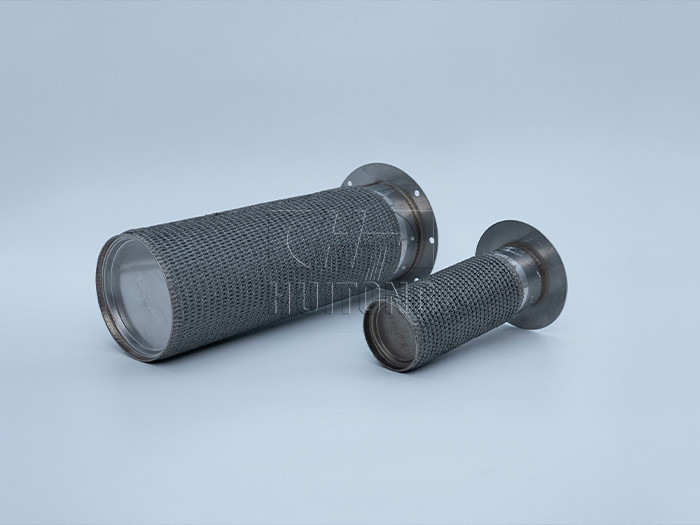

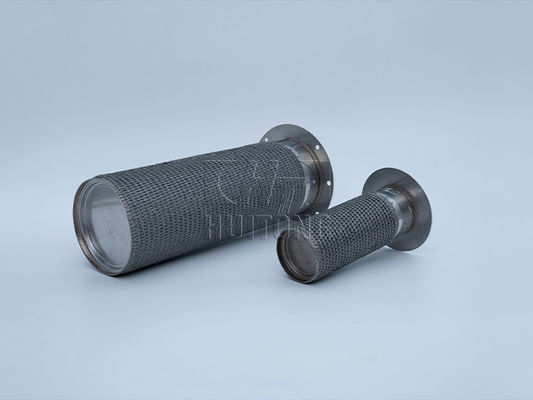

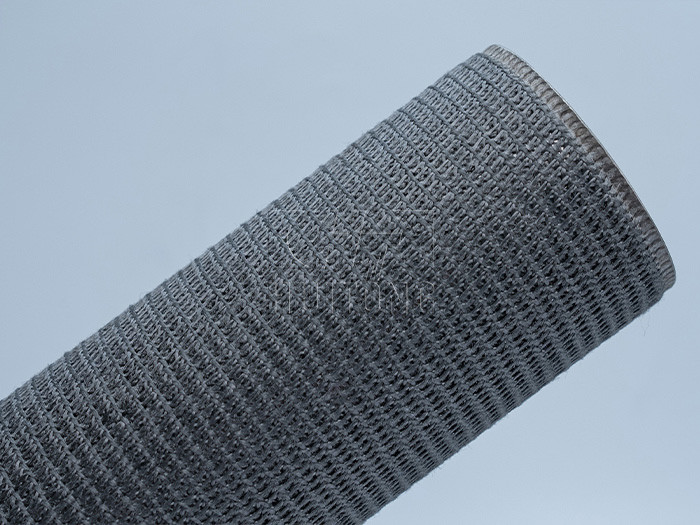

Gas Burner---Metal Fiber Fabric Solutions
【Description】
The main material used in metal fiber gas burners is special iron-chromium-aluminum fiber with a diameter of about 30-50μm. The fiber can be used for sintering or knitting to make a special transparent material with a three-dimensional network structure for metal fiber burner. Some special varieties can be used in the environment of about 1000 °C for a long time, and can withstand a temperature of 1300 °C for a short time.
Features:
* High operating temperature: 1100 ° C (Highest temperature 1250 ° C)
* Large load adjustment range: Infrared combustion mode: 100-800kw/m2; Blue flame combustion mode: 1000-10000kw/m2
* Low resistance: infrared combustion mode: <50pa; blue flame combustion mode: <200pa
* Long lifetime: 20000h
* High radiation efficiency: >50%
* Burn evenly
* Thermal inertia: fast heating and cooling
* Thermal shock resistance: drastic changes in thermal load do not cause damage to materials
* Resistance to mechanical shock: a certain mechanical impact has no effect on the material
* Be made into various shapes of burners
【Application】
It is mainly used for asphalt pavement heating equipment, kitchen equipment, large space heating, material annealing, drying equipment, printing and dyeing equipment, food & pharmaceutical machinery, flammable gas harmless treatment, boilers and steam generators,Wall-hung boilers for domestic and commercial application; all of these equipment and systems need to convert gas into heat.
【Metal fiber fabric solutions】
Huitong has a complete set of production processes from metal fiber to high-temperature fabric and then to burner, which can provide the design of different kinds of metal fiber fabric and combustion head, and can meet the highly customized burner solutions; Metal fiber fabrics with different structures can ensure ideal heat insulation effect; Alloy containing rare earth elements give metal fiber fabrics excellent oxidation resistance and long service life.
【Selection reference】
